Description

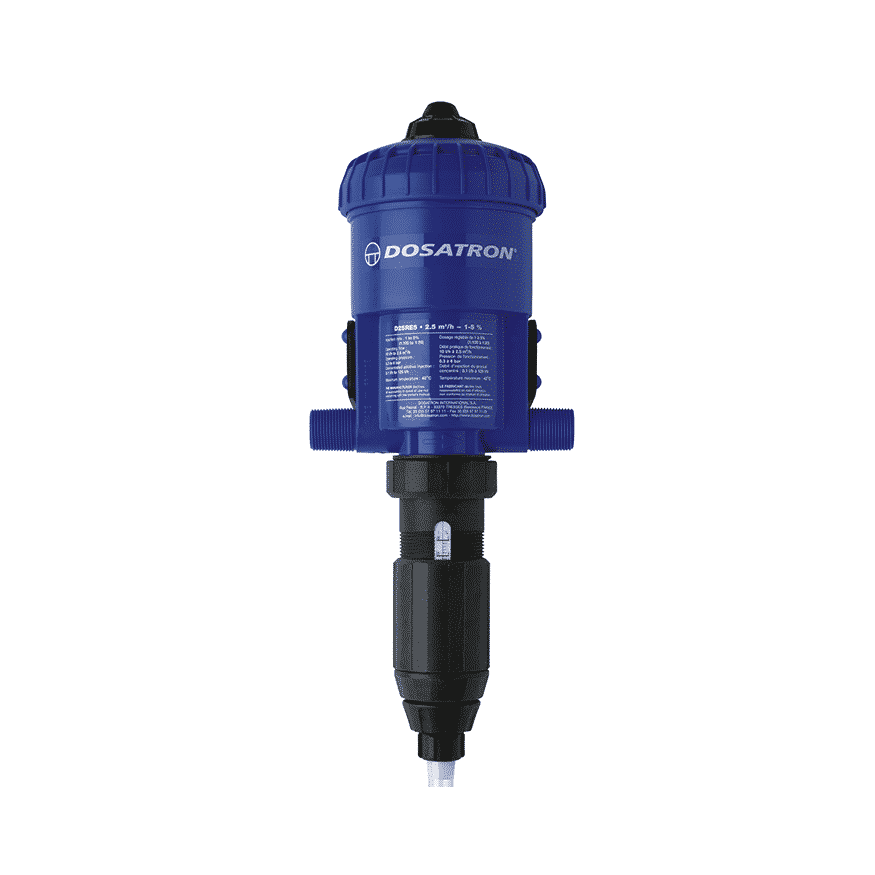

Dosatron D25RE5 dosing pump chemical injector unit.

Dosatron dosing pumps are installed directly in the water supply line and operate by using the flow of water as the power source – no electric power is needed. The water activates the Dosatron, which takes up the required percentage of concentrate directly from the container and injects it into the water.

Inside the Dosatron chemical injector unit, the concentrate is mixed with the water, and the water pressure forces the solution downstream. The dose of concentrate will be directly proportional to the volume of water entering the Dosatron, regardless of variations in flow or pressure, which may occur in the main line.

Dosatron D25RE5 Details:

• Dosing Rate – 1% to 5% (1:100 to 1:20)
• Water Flow Range – 10 to 2,500 Litres Per Hour
• Operating Water Pressure – 0.3 to 6 Bar (4.3 PSI to 85 PSI)
• Operating Water Temperature – 5°C to 40°C
• Connections – 3/4” BSP / NPT Male
• Packaged Weight – 1.7KG
• Packaged Dimensions – 520 x 168 x 175mm (L x W x H)

Package Contents:

• Dosatron
• Wall Bracket
• Transparent Suction Tube – 175cm Long
• Owner’s Manual

Please contact us if you are unsure whether this will suit your application.
