Description

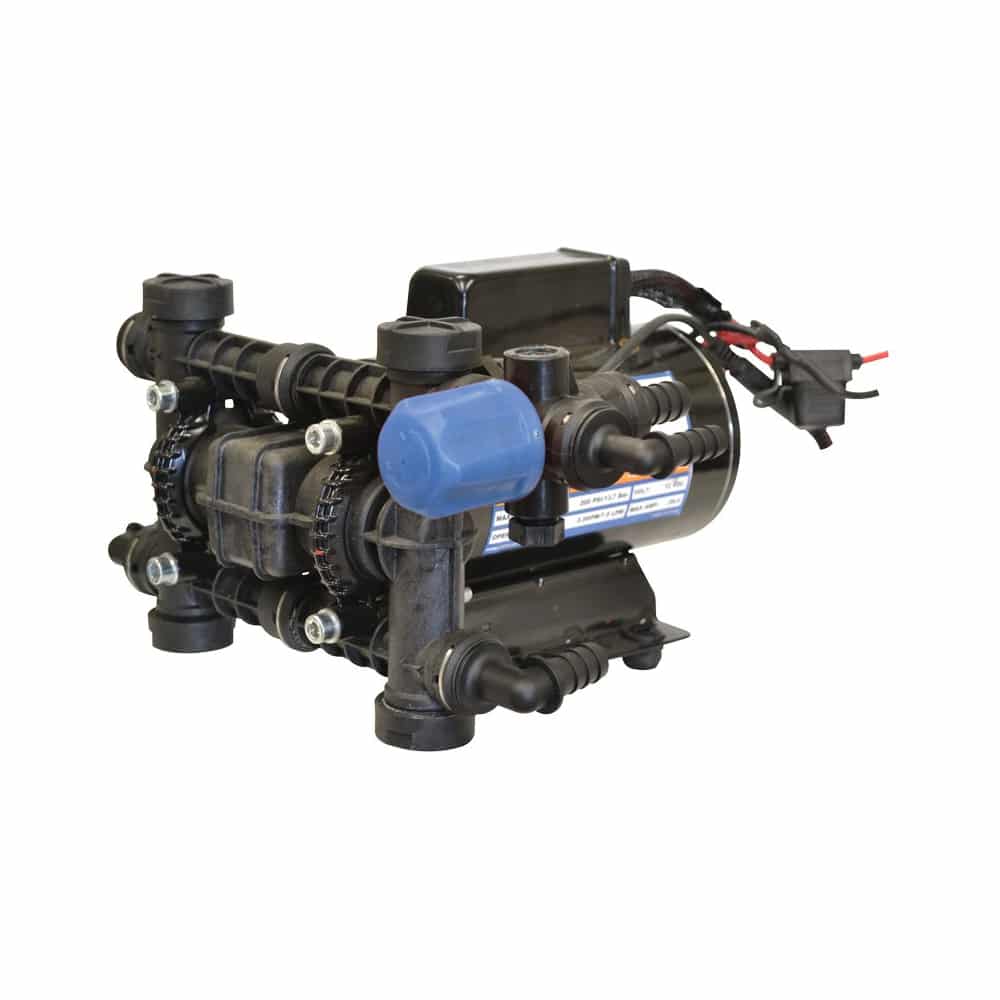

Everflo EFHP2000 12V diaphragm pump.

This chemical resistant diaphragm pump is suitable for a range of fluid transfer applications. Not approved for pumping fuels. Can be mounted in any position (pump side at bottom if mounted vertically) and is self-priming.

This Everflo EFHP2000 12V diaphragm pump is perfect for clean water, fluid transfer, agricultural spraying, tree spraying, lawn sprayers, motorhomes, garden sprayers, livestock spraying, fence spraying, roundup application and much more.

Details:

• Supply – 12 Volt DC, 23 Amps
• Maximum Operating Pressure – 13.7 Bar / 195 PSI
• Maximum Flow – 7.5 Litres Per Minute
• Max Fluid Temperature – 60°C
• Self-priming
• Viton Check Valve
• Santoprene Diaphragm
• Integrated Pressure / Demand Switch
• Polypropylene Housing
• Honeywell Microswitch
• Pressure Regulating Valve
• Power Cable With On / Off Switch & Battery Cables
• Width – 164mm
• Height – 193mm
• Length – 226mm
• Inlet Port – 19mm Quick Connect
• Outlet Port – 19mm Quick Connect
• Includes 1/2″ Hose Barb & 3/8″ NPT Male Fittings

Please contact us if you are unsure whether this will suit your application.
