Description

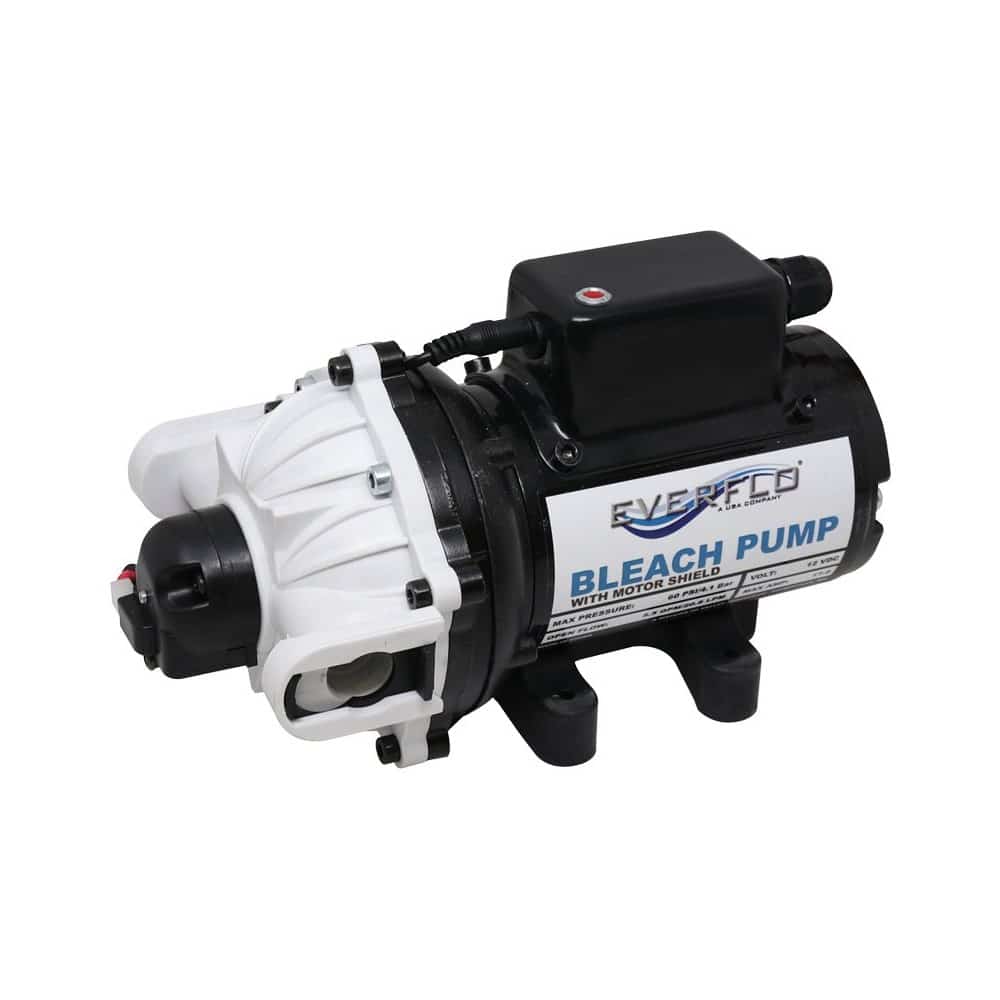

Everflo EFSW5500 12V soft wash pump.

This chemical resistant diaphragm pump is suitable for a range of fluid transfer applications. Not approved for pumping fuels. Can be mounted in any position (pump side at bottom if mounted vertically) and is self-priming up to 2.4 metres above fluid level.

This Everflo EFSW5500 12V soft wash pump is perfect for soft washing, bleach (sodium hypochlorite), clean water, fluid transfer, agricultural spraying, tree spraying, lawn sprayers, motorhomes, garden sprayers, livestock spraying, fence spraying, roundup application and much more.

This Everflo soft wash pump range comes with their exclusive patent-pending “Motor Shield” technology that automatically shuts the pump off if a leak is detected.

Details:

• Supply – 12 Volt DC, 17.0 Amps
• Maximum Operating Pressure – 4.1 Bar / 60 PSI
• Maximum Flow – 20.8 Litres Per Minute
• Max Fluid Temperature – 60°C
• Self-priming up to 2.4 metres
• Viton Check Valve
• Santoprene Diaphragm
• Integrated Pressure / Demand Switch
• Polypropylene Housing
• Honeywell Microswitch
• “Motor Shield” Leak Detection System
• Inlet Port – 19mm Quick Connect With 1/2″ NPT Male & 3/4″ Hose Barb Fittings
• Outlet Port – 19mm Quick Connect With 1/2″ NPT Male & 3/4″ Hose Barb Fittings

Please contact us if you are unsure whether this will suit your application.
