Description

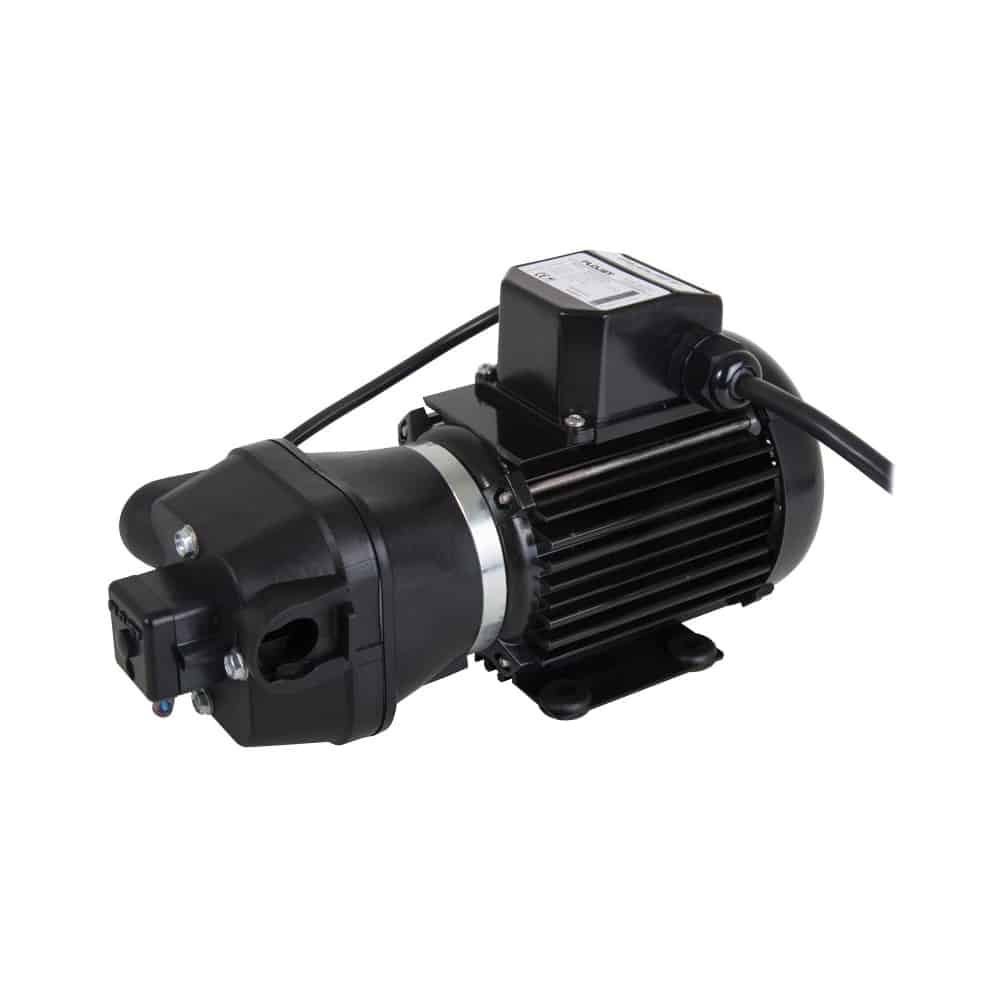

Flojet 4000 Series 240V diaphragm pump (R4300-530A) with santoprene diaphragm, EPDM check valve and an output of 2.5 bar / 36 PSI at 18 litres per minute. It is a demand pump.

This chemical resistant diaphragm pump is suitable for a range of fluid transfer applications. Not approved for pumping fuels.

This Flojet 4000 Series pump is perfect for clean water, fluid transfer, spraying, dispensing, pressure boosting and much more.

Details:

• Supply – 230 / 240 Volt, 2.0 Amps
• Maximum Operating Pressure – 2.5 Bar / 36 PSI
• Maximum Flow – 18 Litres Per Minute
• Max Fluid Temperature – 60°C
• Self-priming up to 2.4 metres
• 2 Pole Induction Motor – S1 Duty
• EPDM Check Valve
• Santoprene Diaphragm
• Integrated Pressure / Demand Switch
• Polypropylene Pump Housing
• Width – 110mm
• Height – 139mm
• Length – 259mm
• Inlet Port – 1/2″ 90° Hose Barb
• Outlet Port – 1/2″ 90° Hose Barb

Please contact us if you are unsure whether this will suit your application.
