Description

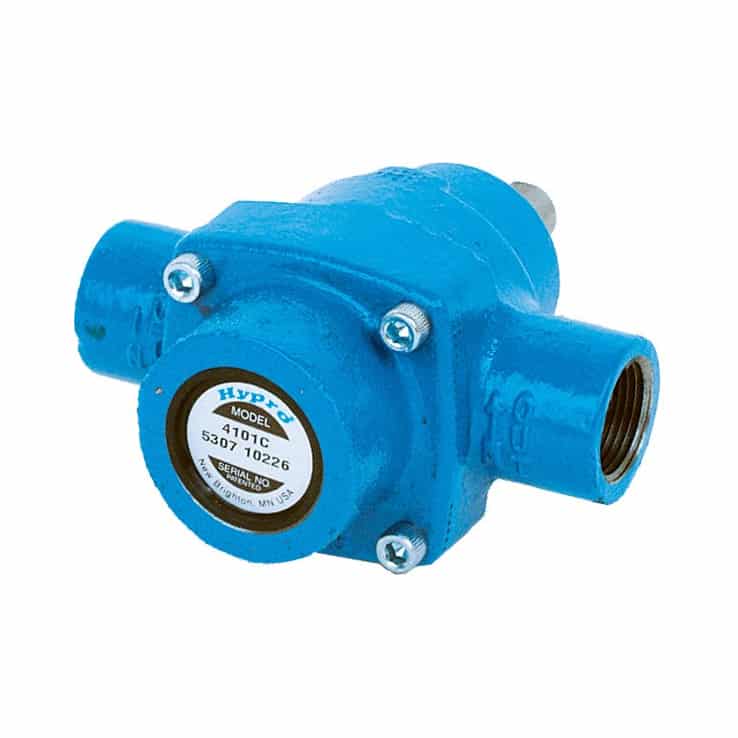

Hypro 4101C roller pump. This roller vane pump has a cast iron body, viton seals and an output of 10.3 bar / 150 PSI at 27.3 litres per minute.

Hypro roller pumps are the most popular pumps worldwide for agricultural tasks. These low-cost, highly-versatile pumps are used for spraying and transferring a variety of fluids including insecticides, herbicides, fungicides, emulsives, aromatic solvents, liquid fertilisers and many other non-abrasive liquids. All pumps are available in three materials: Cast Iron, Ni-Resist or Silver Series XL®.

These pumps contain rollers that revolve inside the pump housing to force the spray solution through the outlet to the nozzle. Hypro roller pumps are easily adaptable to PTO, petrol / diesel engine or electric motor drives. The pumps operate efficiently at PTO speeds of 540 and 1000 RPM.

This is a very high quality roller pump.

Details:

• Maximum Pressure – 10.3 Bar / 150 PSI
• Maximum Flow – 27.3 Litres Per Minute
• Max Fluid Temperature – 60°C
• Maximum Power – 1.1HP / 0.82kW
• Maximum Speed – 2600 RPM
• Male Shaft – 5/8″
• Self-Priming
• Body Material – Cast Iron
• Rotor Material – Cast Iron
• Viton Seals
• 4 Roller Pump With Super Rollers
• Inlet – 3/4” NPT Female
• Outlet – 3/4” NPT Female

Please contact us if you are unsure whether this will suit your application.
