Description

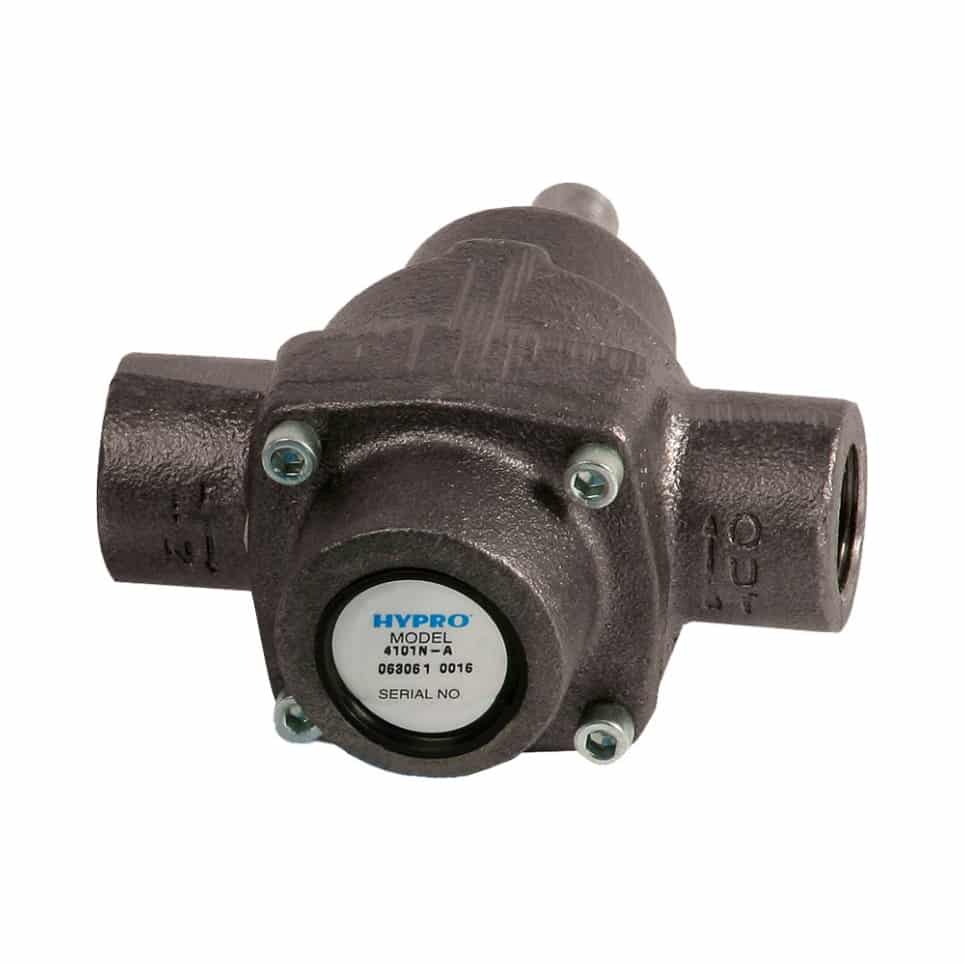

Hypro 4101N roller pump. This roller vane pump has a Ni-Resist (nickel alloy) body, viton seals and an output of 10.3 bar / 150 PSI at 27.3 litres per minute.

Ni-Resist is a high nickel content alloy for better corrosion resistance.

Hypro roller pumps are the most popular pumps worldwide for agricultural tasks. These low-cost, highly-versatile pumps are used for spraying and transferring a variety of fluids including insecticides, herbicides, fungicides, emulsives, aromatic solvents, liquid fertilisers and many other non-abrasive liquids. All pumps are available in three materials: Cast Iron, Ni-Resist or Silver Series XL®.

These pumps contain rollers that revolve inside the pump housing to force the spray solution through the outlet to the nozzle. Hypro roller pumps are easily adaptable to PTO, petrol / diesel engine or electric motor drives. The pumps operate efficiently at PTO speeds of 540 and 1000 RPM. Pressure ranges are up to 300 psi (20.7 bar) with flow rates of 7.6 to 235 litres per minute.

This is a very high quality roller pump.

Details:

• Maximum Pressure – 10.3 Bar / 150 PSI
• Maximum Flow – 27.3 Litres Per Minute
• Max Fluid Temperature – 60°C
• Maximum Power – 1.1HP / 0.82kW
• Maximum Speed – 2600 RPM
• Male Shaft – 5/8″
• Self-Priming
• Body Material – Ni-Resist (Nickel Alloy)
• Rotor Material – Ni-Resist (Nickel Alloy)
• Viton Seals
• 4 Roller Pump With Super Rollers
• Inlet – 3/4” NPT Female
• Outlet – 3/4” NPT Female

Please contact us if you are unsure whether this will suit your application.
