Description

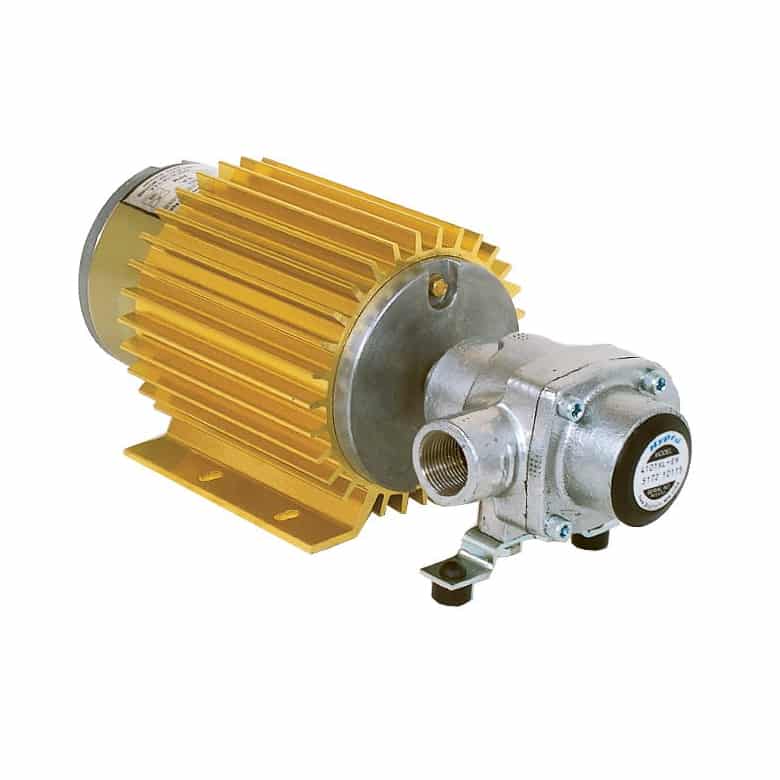

Hypro 4101XL-E2H roller pump & 12V electric motor driven unit. This roller vane pump has a Silver Series XL (custom alloy) body, viton seals and an output of 6.2 bar / 90 PSI at 22.3 litres per minute.

Silver Series XL® has a custom alloy that provides the best corrosion resistance and is ready for use with Roundup®.

Hypro roller pumps are the most popular pumps worldwide for agricultural tasks. These low-cost, highly-versatile pumps are used for spraying and transferring a variety of fluids including insecticides, herbicides, fungicides, emulsives, aromatic solvents, liquid fertilisers, Roundup and many other non-abrasive liquids. All pumps are available in three materials: Cast Iron, Ni-Resist or Silver Series XL®.

These pumps contain rollers that revolve inside the pump housing to force the spray solution through the outlet to the nozzle. Hypro roller pumps are easily adaptable to PTO, petrol / diesel engine or electric motor drives. The pumps operate efficiently at PTO speeds of 540 and 1000 RPM. Pressure ranges are up to 300 psi (20.7 bar) with flow rates of 7.6 to 235 litres per minute.

This is a very high quality roller pump.

Details:

• Supply – 12 Volt DC, 34.2 Amps
• Pressure – 6.2 Bar / 90 PSI
• Flow – 22.3 Litres Per Minute
• Max Fluid Temperature – 60°C
• Self-Priming
• Pump Body Material – Silver Series XL (Custom Alloy)
• Pump Rotor Material – Silver Series XL (Custom Alloy)
• Viton Seals
• 4 Roller Pump With Super Rollers
• Inlet – 3/4” NPT Female
• Outlet – 3/4” NPT Female

Please contact us if you are unsure whether this will suit your application.
