Description

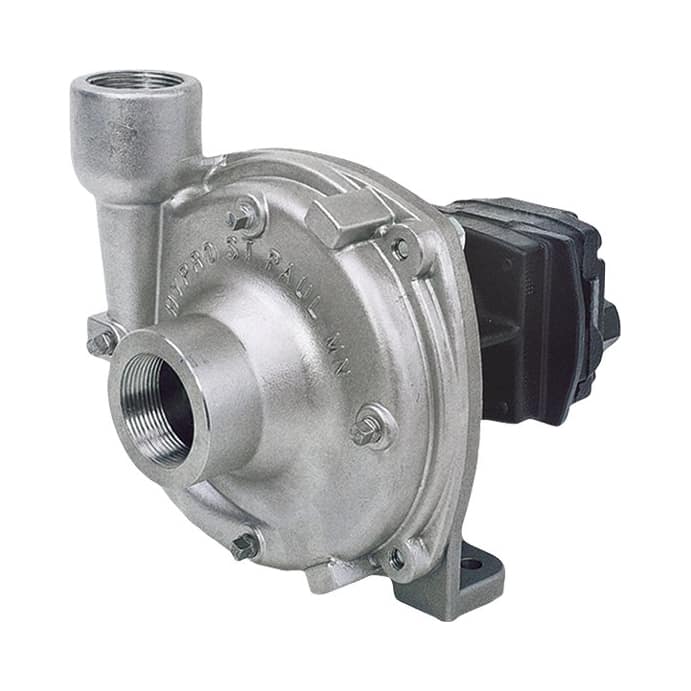

Hypro 9303S-HM1C hydraulic driven centrifugal pump. It has an AISI 316 stainless steel body, viton seals and an output of 8.9 bar / 129 PSI at 431 litres per minute.

This is a very high quality centrifugal pump.

Details:

• Maximum Pressure – 8.9 Bar / 129 PSI
• Maximum Flow – 431 Litres Per Minute
• Non Self-Priming
• Hydraulic Motor Driven
• Body Material – AISI 316 Stainless Steel
• Viton Seals
• Maximum Oil Pressure – 150 Bar / 1450 PSI
• Maximum Oil Flow – 49 Litres Per Minute
• Inlet – 1 1/2” BSP Female
• Outlet – 1 1/4” BSP Female
• Motor Port In – 1/2″ NPT Female
• Motor Port Out – 3/4″ NPT Female
• Carbon Ceramic Mechanical Seal
• Glass Filled Polypropylene Impeller

Please contact us if you are unsure whether this will suit your application.
