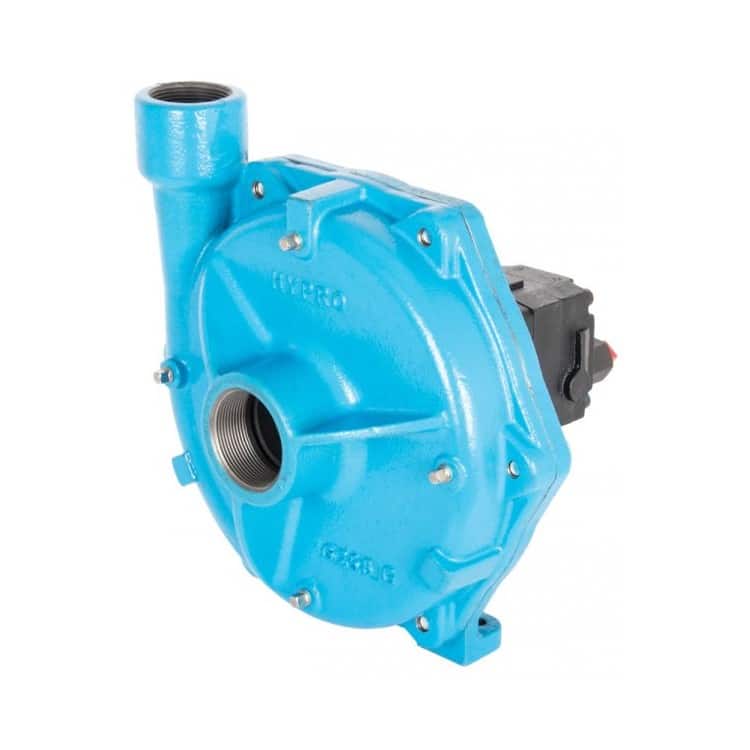

Hypro 9305C-HM3C Hydraulic Driven Centrifugal Pump
£ 2,149.99 inc. VAT
Hypro 9305C-HM3C hydraulic driven centrifugal pump. It has a cast iron body, viton seals and an output of 10.7 bar / 155 PSI at 689 litres per minute.
Description
Hypro 9305C-HM3C hydraulic driven centrifugal pump. It has a cast iron body, viton seals and an output of 10.7 bar / 155 PSI at 689 litres per minute.
This is a very high quality centrifugal pump.
Details:
-
Maximum Pressure – 10.7 Bar / 155 PSI
-
Maximum Flow – 689 Litres Per Minute
-
Non Self-Priming
-
Hydraulic Motor Driven
-
Body Material – Cast Iron
-
Viton Seals
-
Maximum Oil Pressure – 206 Bar / 2990 PSI
-
Maximum Oil Flow – 72 Litres Per Minute
-
Inlet – 2โ Female
-
Outlet – 1 1/2โ Female
-
Motor Port In – 1/2″ NPT Female
-
Motor Port Out – 3/4″ NPT Female
-
Carbon Ceramic Mechanical Seal
-
Glass Filled Nylon Impeller
Please contact us if you are unsure whether this will suit your application.
Additional information
Weight | 29.48 kg |
---|
