Description

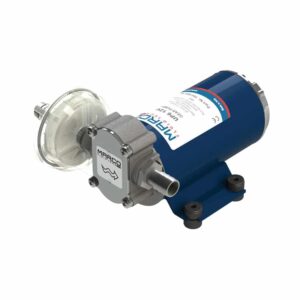

Marco UP3 24V gear pump electric motor driven unit. It has helicoidal bronze gears, a nickel plated brass pump body, viton seals, buna o-rings and an output of 2 bar / 29 PSI at 15 litres per minute.

This Marco UP3 24V gear pump is perfect for clean water, diesel and antifreeze.

Details:

• Supply – 24 Volt DC, 5 Amps
• Maximum Operating Pressure – 2 Bar / 29 PSI
• Maximum Flow – 15 Litres Per Minute
• Max Fluid Temperature – 60°C
• Max Suction – 1.5 Metres
• Self-Priming
• Pump Body Material – Nickel Plated Brass
• Helicoidal Bronze Gears
• Viton Seals
• Buna O-Rings
• Inline Filter (Not for flooded feed)
• Width – 166mm
• Height – 101mm
• Length – 159mm
• Inlet Port – 3/8″ BSP Female
• Outlet Port – 3/8″ BSP Female
• Includes 2x 13mm Brass Hose Barbs

Please contact us if you are unsure whether this will suit your application.
