Description

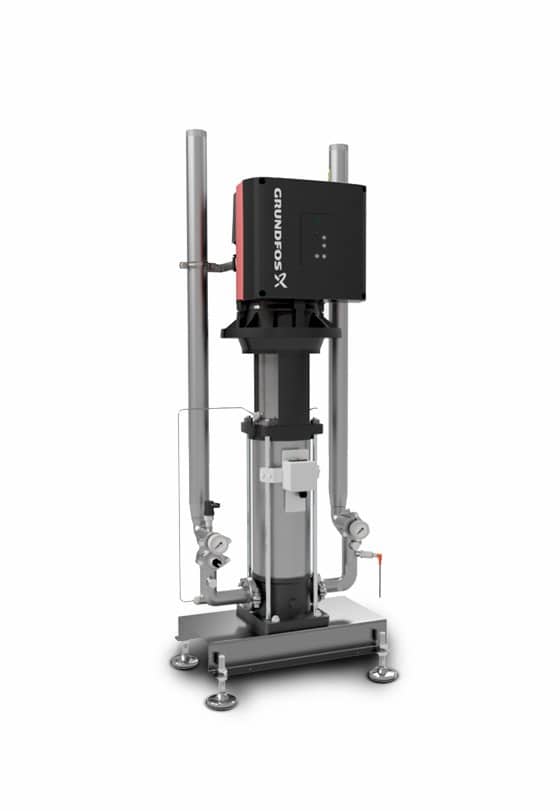

The System Cleaners BS1 water booster pump station provides a boosted water supply for open plant cleaning solutions in the food and beverage industry.

This frequency controlled pump will provide 1 independent satellite station with a boosted water supply of up to 20 bar. It requires suitable water and three phase electrical supplies as detailed below.

It should be placed in a separate technical room, or similar, to protect it from the processing environment and comes with a frame that can be bolted to the floor.

This System Cleaners BS1 water booster pump station is very high quality and Danish made.

Pump:

• Pump Type – Grundfos CRNE 3-9
• Motor – 3HP / 2.2kW
• Number of Operators Simultaneously – 1

Water Supply:

• Connection – 1 1/2″ BSP Female
• Minimum Flow Rate – 50 Litres Per Minute
• Minimum Inlet Pressure – 1.5 Bar / 23 PSI
• Maximum Inlet Pressure – 10 Bar / 145 PSI
• Temperature – 3 to 70°C

Electrical:

• Voltage & Frequency – 400V 50Hz

Outlet:

• Maximum Outlet Pressure – 20 Bar / 290 PSI
• Maximum Flow Rate @ 20 Bar (Inc. 4 Bar Inlet Pressure) – 30 Litres Per Minute
• Connection – 1 1/2″ BSP Female

Weight & Dimensions:

• Height – 1210mm
• Width – 570mm
• Length – 410mm
• Weight – 90KG



Please note that this product has a 2 to 4 week delivery time.

Please contact us if you are unsure whether this will suit your application or if you require a different specification to what is listed here.
