Description

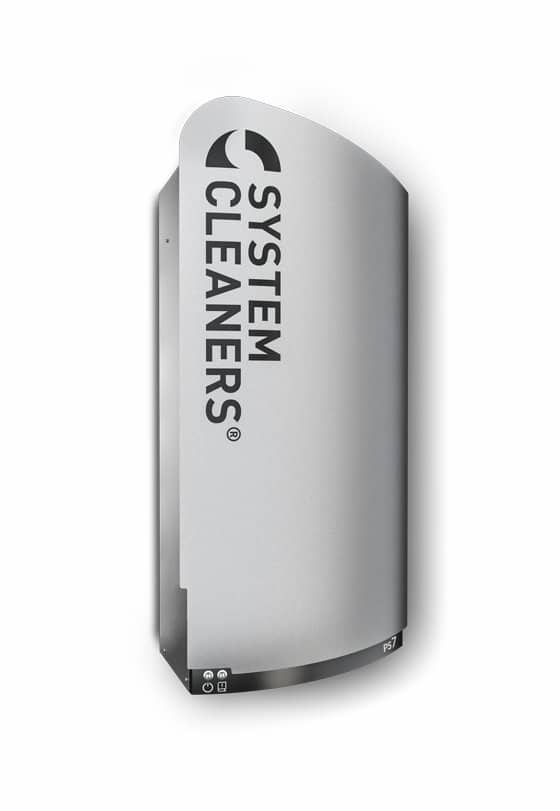

The System Cleaners PS7 water booster pump station provides a boosted water supply for open plant cleaning solutions in the food and beverage industry.

This frequency controlled pump will provide up to 7 independent satellite stations with a boosted water supply of up to 20 bar. It requires suitable water and three phase electrical supplies as detailed below.

It should be wall mounted and is protected by a stainless steel cabinet, making it possible to place it anywhere such as in the processing environment.

This System Cleaners PS7 water booster pump station is very high quality and Danish made.

Pump:

• Pump Type – Grundfos CRNE 10-9
• Motor – 10HP / 7.5kW
• Number of Operators Simultaneously – Up to 7

Water Supply:

• Connection – 1 1/2″ BSP Female
• Minimum Flow Rate – 250 Litres Per Minute
• Minimum Inlet Pressure – 1.5 Bar / 23 PSI
• Maximum Inlet Pressure – 10 Bar / 145 PSI
• Temperature – 3 to 70°C

Electrical:

• Voltage & Frequency – 400V 50Hz

Outlet:

• Maximum Outlet Pressure – 20 Bar / 290 PSI
• Connection – 1 1/2″ BSP Female

Weight & Dimensions:

• Height – 1240mm
• Width – 680mm
• Length – 430mm
• Weight – 150KG



Please note that this product has a 2 to 4 week delivery time.

Please contact us if you are unsure whether this will suit your application or if you require a different specification to what is listed here.
