Description

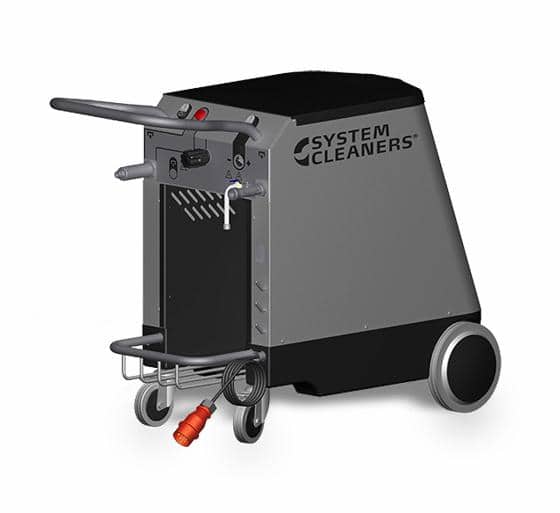

The System Cleaners Voyager mobile main station is an open plant cleaning solution which enables manual cleaning of processing equipment in the food and beverage industry.

The Voyager can be moved around and connected to outlets in various locations. Detergents are stored inside the unit.

The Voyager is a stand-alone workstation featuring an integrated booster pump for the incoming water. This unit requires connection to mains water, a power supply and a compressed air line (the K variants do not require compressed air as they have a built-in compressor).

It can perform rinsing along with foam application and disinfection depending on the variant chosen.

Which variant?

There are four standard variants of this model that you can choose on the drop down list, their differences are listed below.

This System Cleaners Voyager mobile main station is very high quality and Danish made.

Pump:

• Pump Type – Grundfos CRNE 3-9
• Motor (2 and 2K) – 3HP / 2.2kW
• Motor (4 and 4K) – 5.4HP / 4kW
• Number of Operators – 1



Foam:

• Flow Rate – 150 Litres Per Minute
• Dosage – 0.2% to 6%



Disinfectant:

• Flow Rate – 7 Litres Per Minute
• Dosage – 0.2% to 6%

Water Supply:

• Connection – 3/4″ BSP Male
• Minimum Flow Rate – 75 Litres Per Minute
• Minimum Inlet Pressure – 1.5 Bar / 22 PSI
• Maximum Inlet Pressure – 10 Bar / 145 PSI
• Maximum Temperature – 70°C

Air Supply (Does not apply to the 2K and 4K with built in air compressors):

• Minimum Flow Rate – 150 Litres Per Minute
• Minimum Inlet Pressure – 5 Bar / 72 PSI
• Maximum Inlet Pressure – 10 Bar / 145 PSI



Electrical:

• Voltage & Frequency – 400V 50Hz

Outlet:

• Max 1/2″ Hose Length – 35 Metres
• Maximum Pressure @ 40 Litres Per Minute (2 and 2K) – 20 Bar / 290 PSI
• Maximum Pressure @ 40 Litres Per Minute (4 and 4K) – 25 Bar / 363 PSI

Weight & Dimensions:

• Height – 970mm
• Width – 1350mm
• Length – 570mm
• Weight (2) – 100KG
• Weight (2K and 4) – 120KG
• Weight (4K) – 140KG



Please note that this product has a 2 to 4 week delivery time.

Please contact us if you are unsure whether this will suit your application or if you require a different specification to what is listed here.
