Description

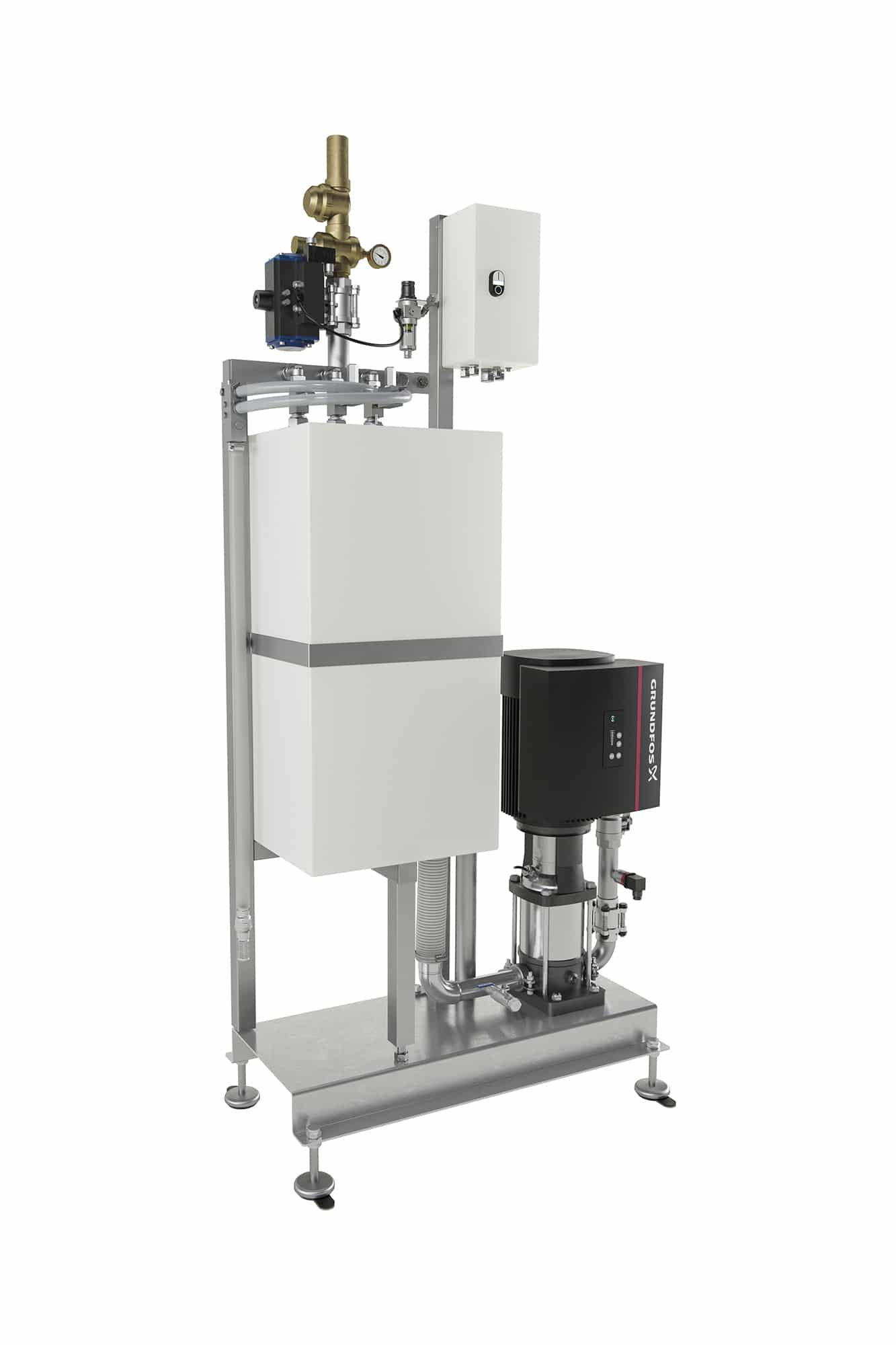

The System Cleaners KPV150 chemical booster pump station provides a boosted chemical supply for open plant cleaning solutions in the food and beverage industry.

This frequency controlled pump will mix detergent and water in an integrated tank and provide up to 25 independent satellite stations with a boosted pre-diluted chemical supply at a pressure of 8 to 12 bar. It requires suitable water and three phase electrical supplies as detailed below.

It should be placed in a separate technical room, or similar, to protect it from the processing environment and comes with a frame that can be bolted to the floor.

This System Cleaners KPV150 chemical booster pump station is very high quality and Danish made.

Pump:

• Pump Type – Grundfos CRNE 5-14J
• Motor – 7.4HP / 5.5kW
• Number of Operators Simultaneously – Up to 25

Chemical:

• Dosing Range – 0.1% to 10%



Water Supply:

• Connection – 1 1/4″ BSP Female
• Minimum Flow Rate – 250 Litres Per Minute
• Minimum Inlet Pressure – 3 Bar / 46 PSI
• Maximum Inlet Pressure – 10 Bar / 145 PSI
• Temperature – 3 to 30°C

Electrical:

• Voltage & Frequency – 400V 50Hz

Outlet:

• Maximum Outlet Pressure – 8 to 12 Bar / 116 to 174 PSI
• Maximum Flow Rate – 177 Litres Per Minute
• Connection – 1 1/4″ BSP Female

Weight & Dimensions:

• Height – 1845mm
• Width – 965mm
• Length – 512mm
• Weight – 170KG



Please note that this product has a 2 to 4 week delivery time.

Please contact us if you are unsure whether this will suit your application or if you require a different specification to what is listed here.
